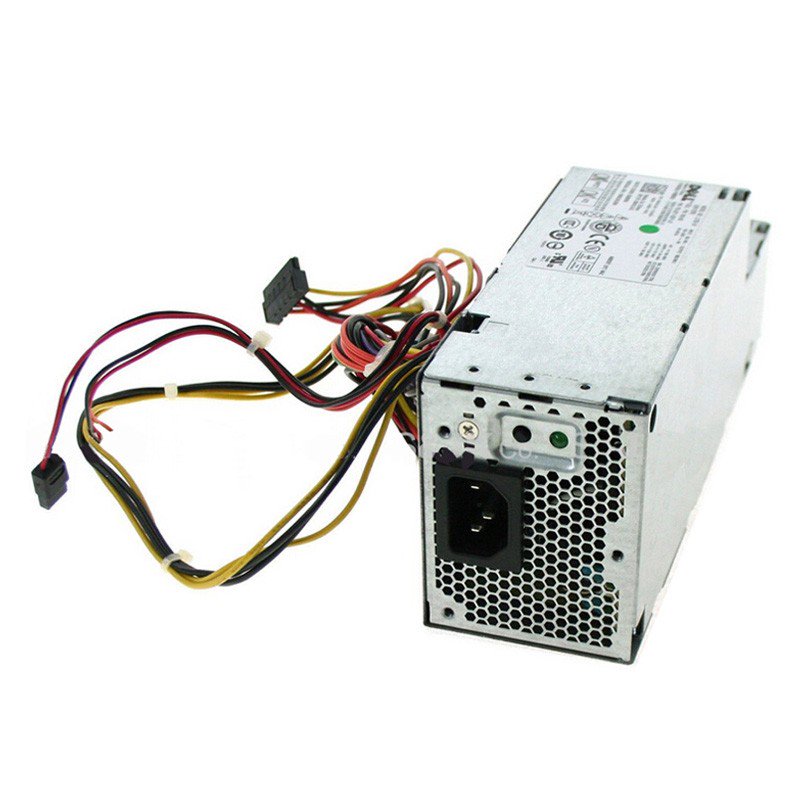

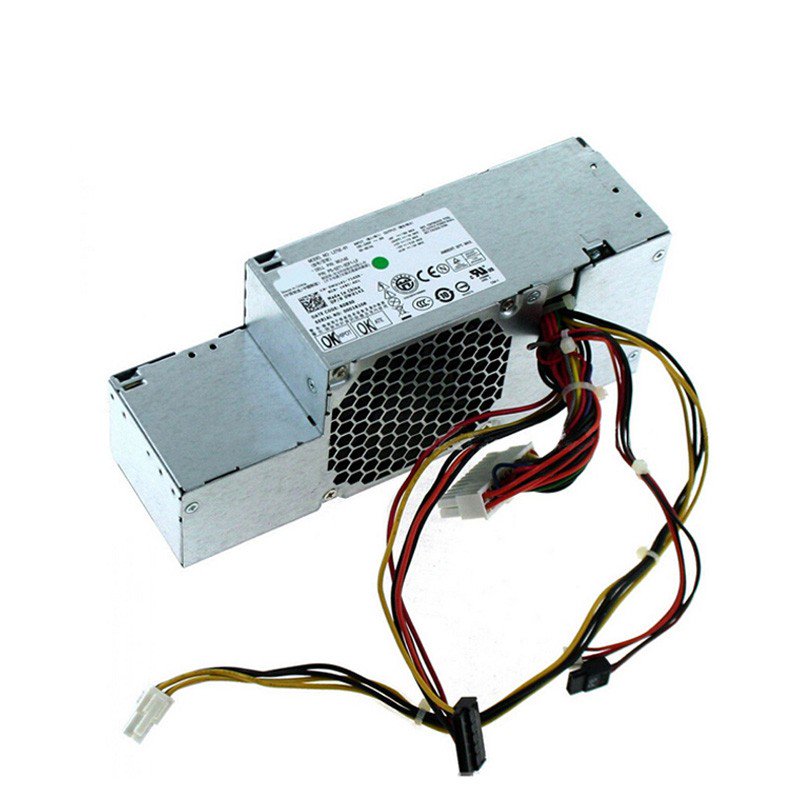

Dell WU142 0WU142 275W Power Supply for Optiplex 740 745 755 SFF L275E-01

Regular price ¥0.00 Sale

Product SKU: WU142


Specifiction

Item Dell WU142 0WU142 275W Power Supply for Optiplex 740 745 755 SFF L275E-01
Part Number WU142,0WU142,CN-0WU142
Alternative Parts MH300 KH620

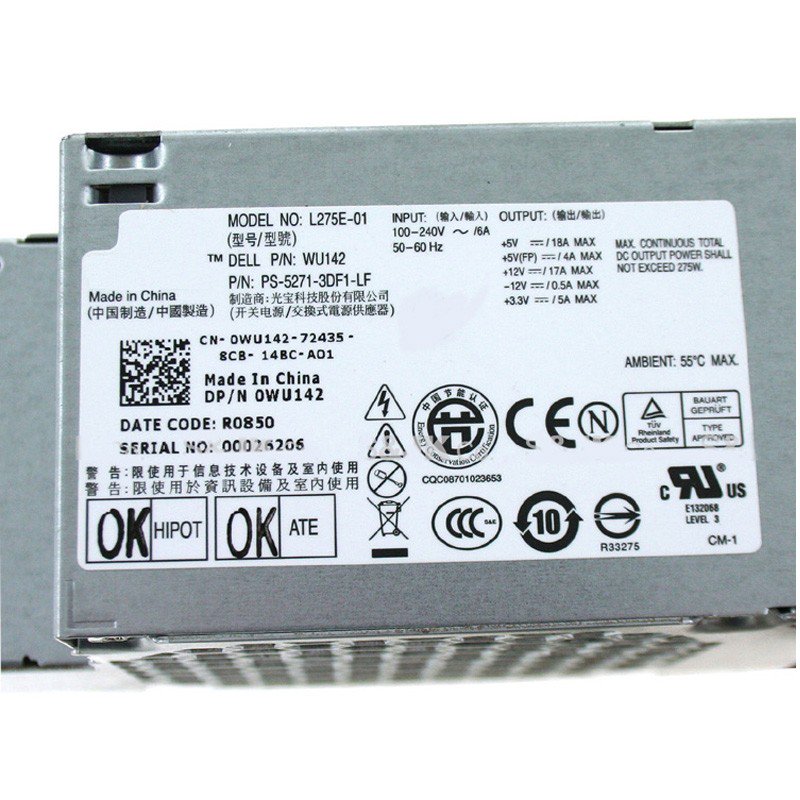

Model Number L275E-01
Max Power 275Watt
Application Dell Dimension 9200C Dell XPS 210 Dell Optiplex 740 SFF / 745 SFF /755 SFF
Detail Description Have Original Tested Working 275W Power Supply 0WU142 L275E-01 In Good Condition.Fitting For Dell Optiplex 740 745 755 SFF .
Connectors - P1 - 24 Pin ATX Motherboard System Board Power Connector - P2 - 4 Pin P4 Motherboard System Board Power Connector - P3 - 4 Pin SATA Standard Power Connector - P5 - 4 Pin FDD Connector
Condition Refurbished, Tested, Working
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
