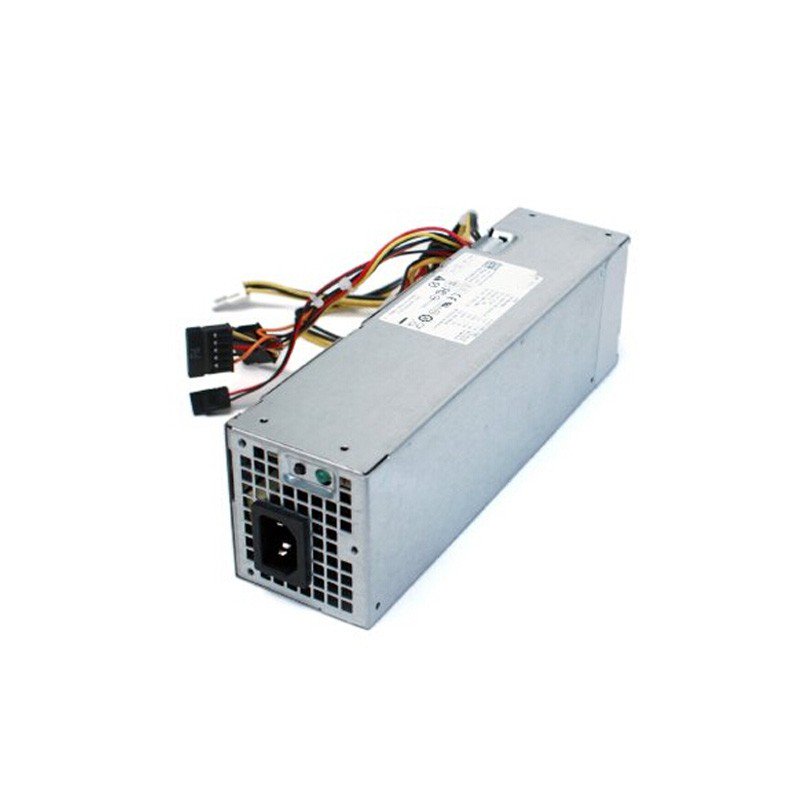

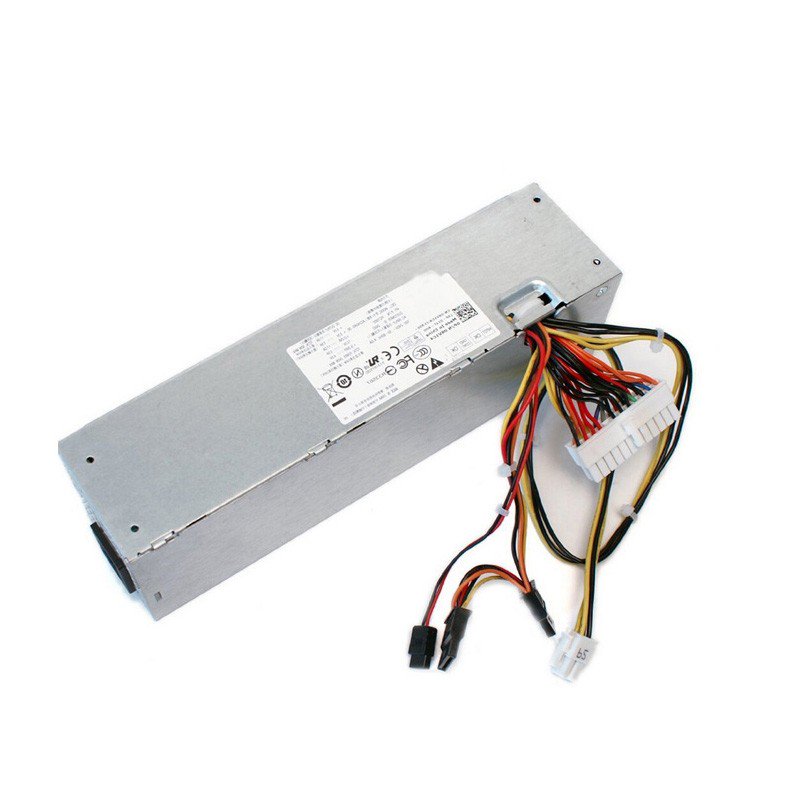

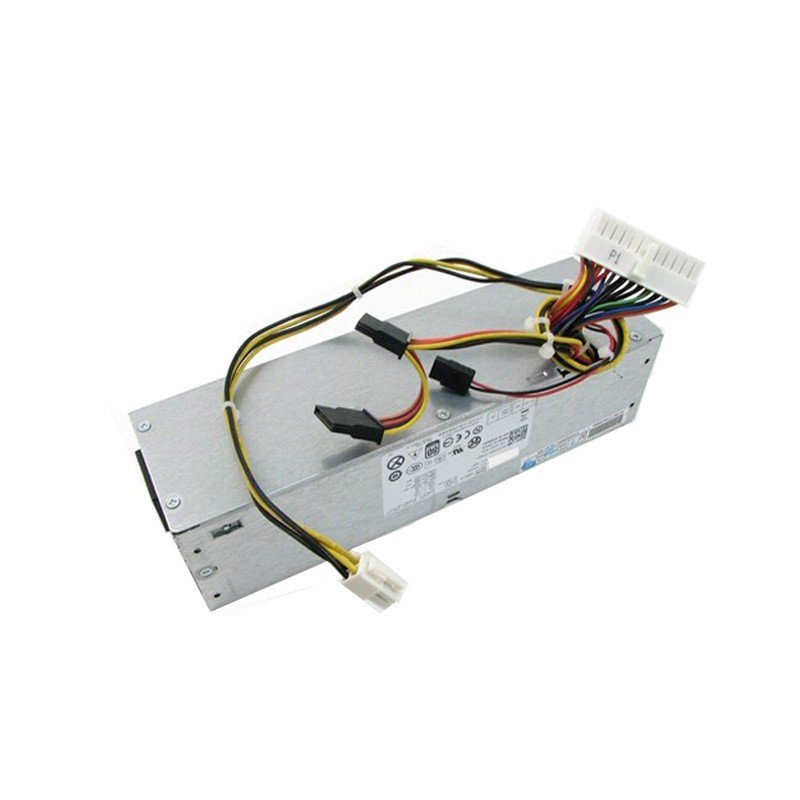

Dell VMRD2 0VMRD2 240W Power Supply for Optiplex 7010 9010 GX790 GX990 AC240ES-01

Regular price ¥0.00 Sale

Product SKU: VMRD2


Specifiction

Item Dell VMRD2 0VMRD2 240W Power Supply for Optiplex 7010 9010 GX790 GX990 AC240ES-01
Part Number VMRD2,0VMRD2,CN-0VMRD2
Alternative Parts N9MWK T5VF6
Model Number AC240ES-01
Ref. No. L240AS-00 L240AS PS-5241-5DG D240ES-01 DPS-240AB-1 H240ES-01 D240E004L
Max Power 240Watt
Input 100-240V/ 3.6A
Application Dell Optiplex 7010 9010 GX790 GX990
Detail Description Have Original Tested Working 240Watt Power Supply 0VMRD2 AC240ES-01 In Good Condition.Fitting For Dell Optiplex 7010 9010 GX790 GX990.
Connectors P1 - 24-Pin ATX Power P2 - 4-Pin ATX Power P3 - SATA Power P4 - SATA Power P5 - 2-pin Slim Line SATA
Condition Refurbished, Tested, Working
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
