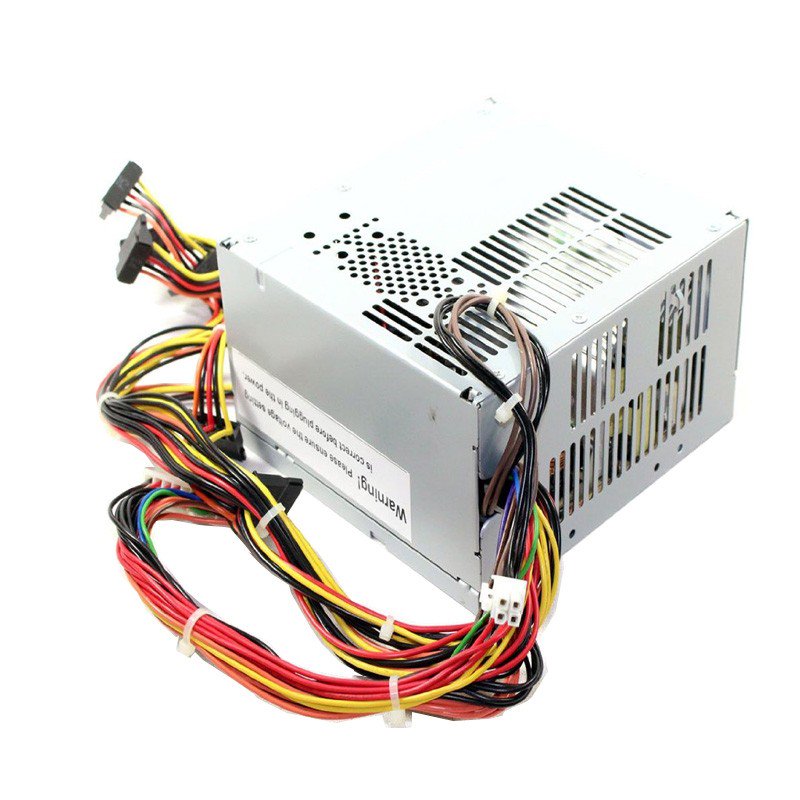

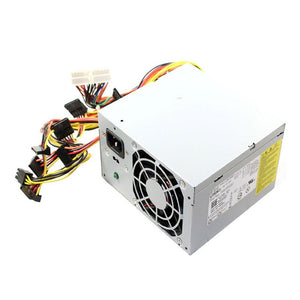

Dell U345D 0U345D Power Supply for Inspiron 530 531 Vostro 200 400 Studio 540 Systems PS-6351-2 350W

Regular price ¥0.00 Sale

Product SKU: U345D


Specifiction

Item Dell U345D 0U345D Power Supply for Inspiron 530 531 Vostro 200 400 Studio 540 Systems PS-6351-2 350W

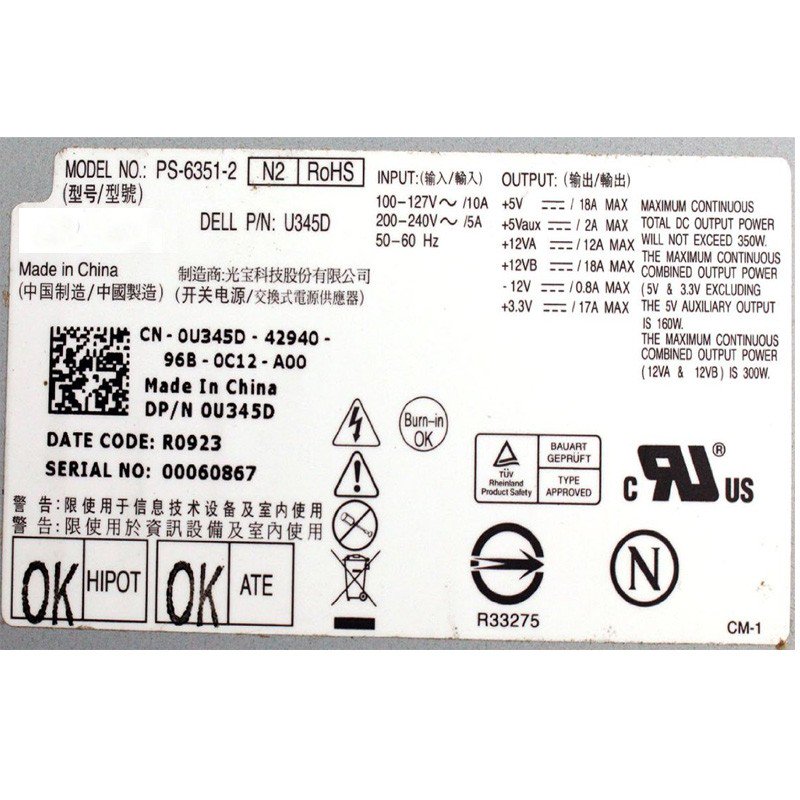

Part Number U345D,0U345D,CN-0U345D
Model Number PS-6351-2
Max Power 350W
Input 100-240V
Application Dell Inspiron 530 531 Vostro 200 400 Studio 540 Systems
Detail Description Dell Inspiron 530 531 Vostro 200 400 Studio 540 Systems 0U345D PS-6351-2 350W Power Supply With Repalcement Part Number FU909 FU913 G739T G846G G848G
Connectors 1x 24-pin ATX Power Connector 1x 4-pin ATX Power Connector 1x 6-pin PCI-e Power Connector 4x SATA Power Connectors 1x Floppy Drive Power Connector
Condition Refurbished, Tested, Working
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
