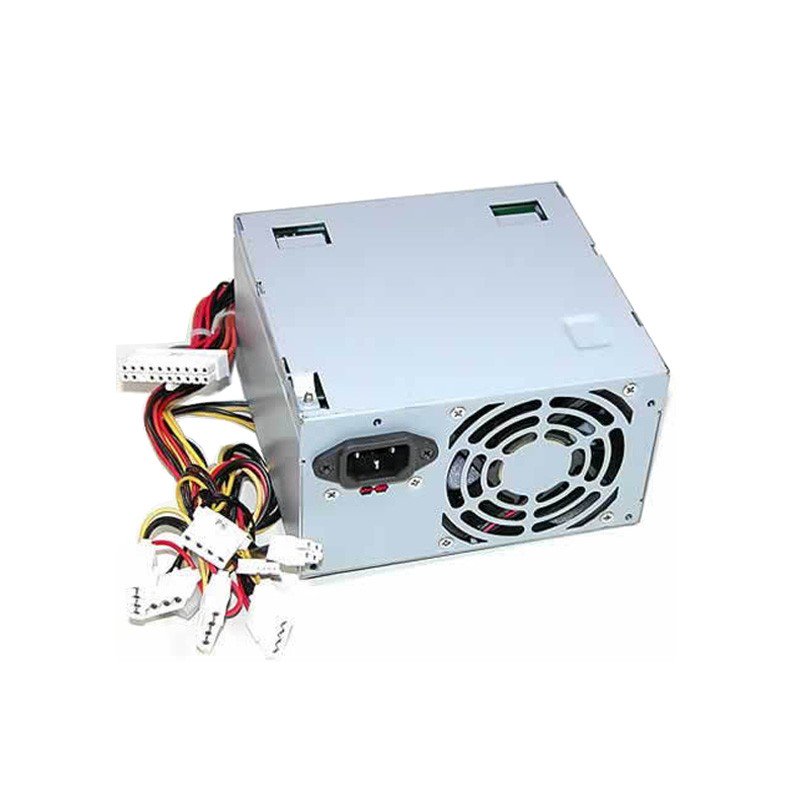

Dell Dimension 1100 2200 2300 2350 250W Power Supply M0148 0M0148 PS-5251-2DS

Dell Dimension 1100 2200 2300 2350 250W Power Supply M0148 0M0148 PS-5251-2DS

Regular price ¥0.00 Sale

Product SKU: M0148


Specifiction

Item Dell Dimension 1100 2200 2300 2350 250W Power Supply M0148 0M0148 PS-5251-2DS
Part Number M0148,0M0148,CN-0M0148

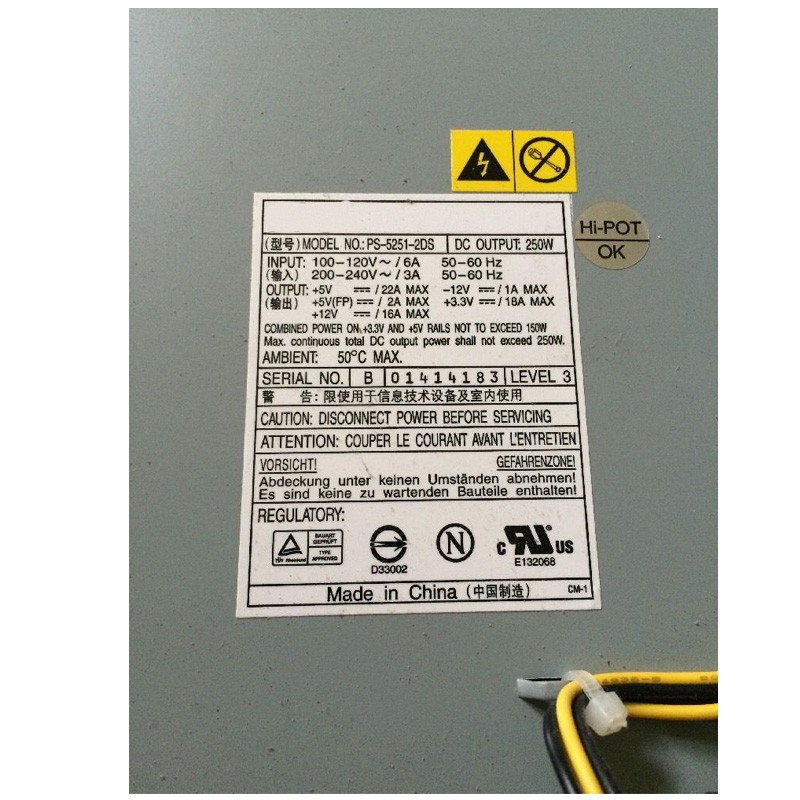

Model Number PS-5251-2DS
Max Power 250W
Input 100-240V
Application Dell Dimension B110 1100 2200 2300 2350 2400 3000 4300 4400 4500 4550 4600 8200 8250 8300 Dell Optiplex GX150 160L 170L GX240 GX260 GX270 GX60 Dell PowerEdge 400SC 600SC Dell Precision Workstation 340 350 360
Detail Description Dell PowerEdge C6220 1200W Hot Plug Power Supply 09X810 Is An Original Hot Plug Power Supply For Systems Of PowerEdge C6220.We Have This Part In Good Condition.
Condition Refurbished, Tested, Working
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
