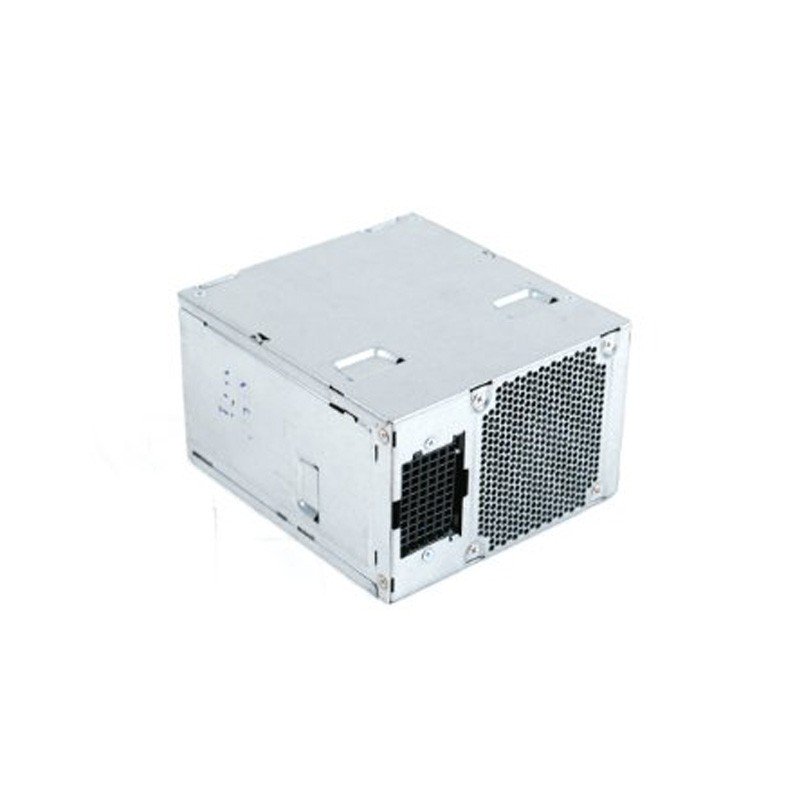

Dell Precision T3500 Workstation 525Watt Power Supply 06W6M1 H525AF-00

Dell Precision T3500 Workstation 525Watt Power Supply 06W6M1 H525AF-00

Regular price ¥0.00 Sale

Product SKU: 06W6M1


Specifiction

Item Dell Precision T3500 Workstation 525Watt Power Supply 06W6M1 H525AF-00
Part Number 6W6M1,06W6M1,CN-06W6M1
Alternative Parts U597G 0G05V M821J M822J X008G

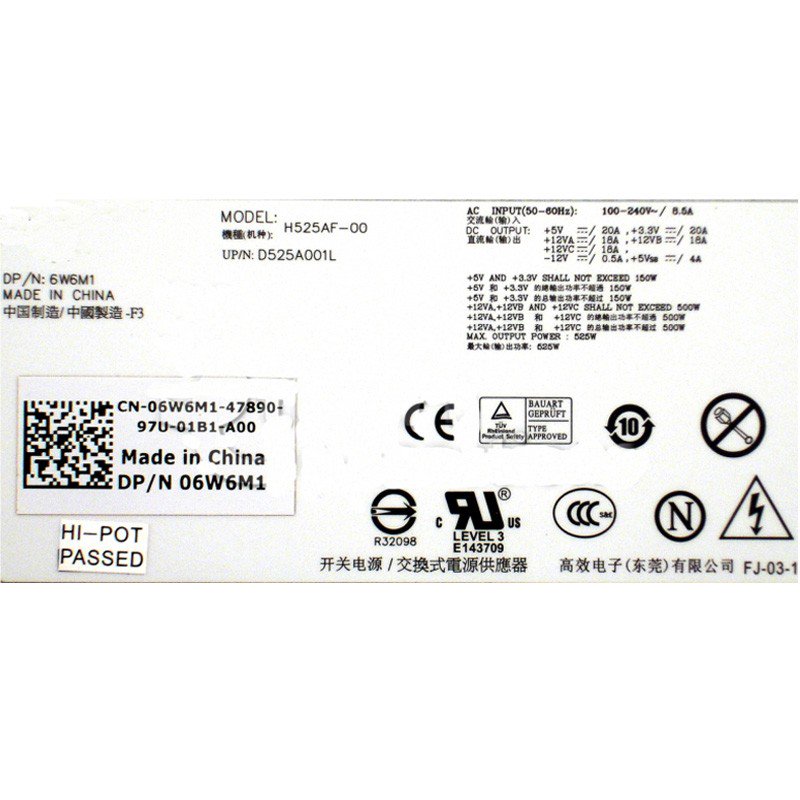

Model Number H525AF-00
Max Power 525Watt
Input 100-240V ~8.5A
Output +5V----20 A +3.3 V----20A +12 VA----18A +12 VB----18A +12 VC----18A -12 V----0.5 A +5V SB----4A
Application Dell Precision T3500 Workstation
Detail Description Part Number: 6W6M1,06W6M1,CN-06W6M1 Model No.: H525AF-00 Max Power: 525W Fit Models: Dell Precision T3500 Workstation
Connectors 1x 24-Pin ATX Power 1x 8-Pin CPU ATX Power 1x 6-Pin P5 ATX Power 5x SATA Connectors 1x 4-Pin Molex Connectors 1x Floppy Drive Power
Condition Refurbished, Tested, Working
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
