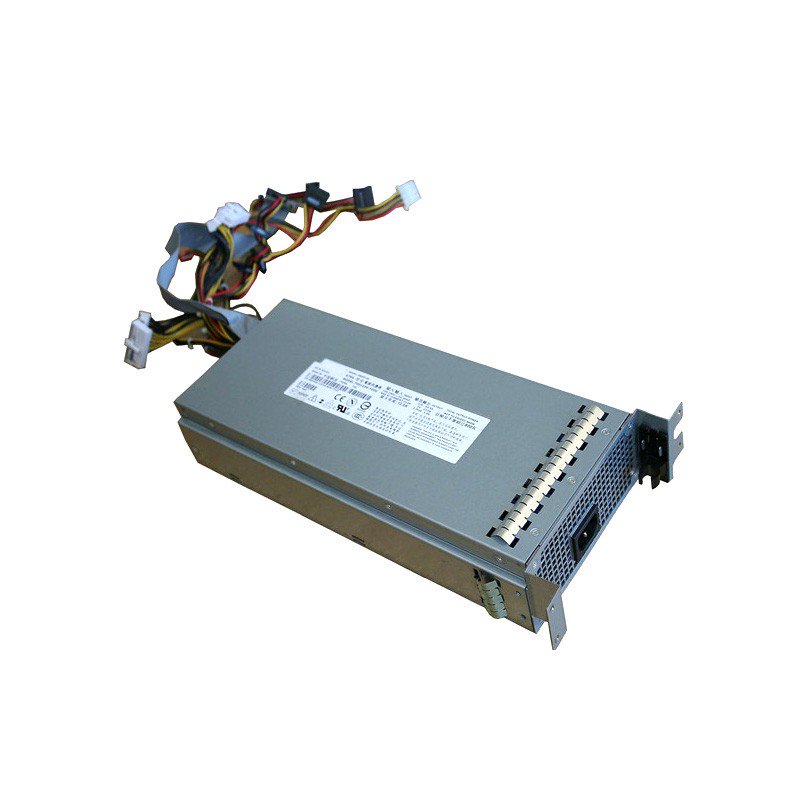

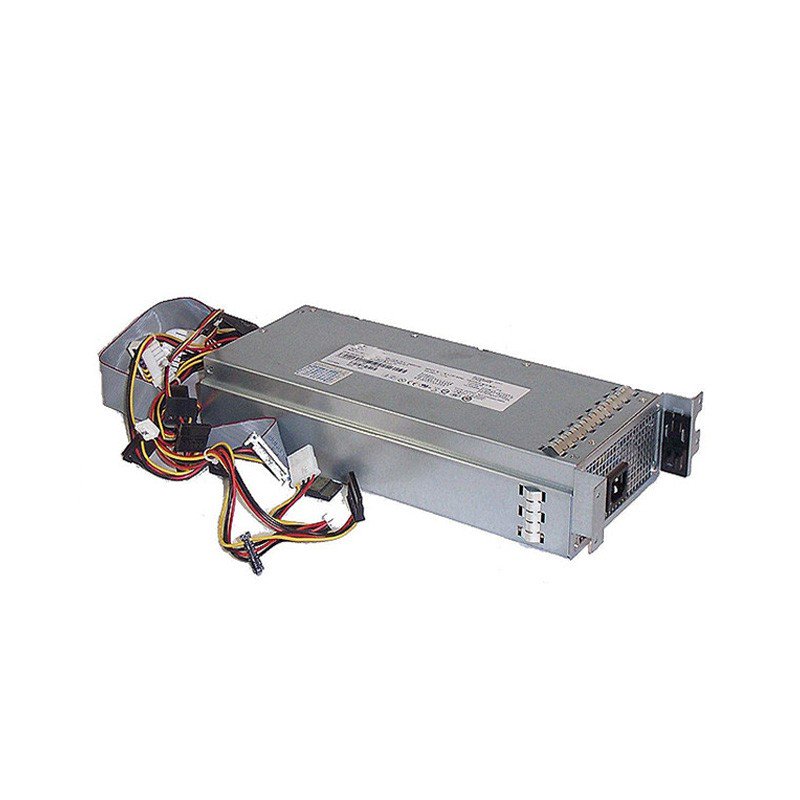

Dell PowerEdge 1900  800Watt Power Supply ND444 0ND444 Z800P-00

Dell PowerEdge 1900 800Watt Power Supply ND444 0ND444 Z800P-00

Regular price ¥0.00 Sale

Product SKU: 0ND444


Specifiction

Item Dell PowerEdge 1900 800Watt Power Supply ND444 0ND444 Z800P-00
Part Number ND444,0ND444,CN-0ND444
Model Number Z800P-00
Max Power 800Watt
Input 100-240V ~10A
Output +12 V----62.5 A +5 V----15.0 A +3.3 V----5.0 A
Application Dell PowerEdge 1900
Detail Description Dell PN: ND444,0ND444,CN-0ND444 Model No.: Z800P-00 Max Power: 800W Fit Models: Dell PowerEdge 1900
Connectors 1X24-Pin ATX Motherboard Power Connector 8XSerial ATA (SATA) Connector 2XPower (IDE) Connector 1XFloppy Drive (FDD) Connector 1X30 Pin Connector
Condition Refurbished, Tested, Working
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
