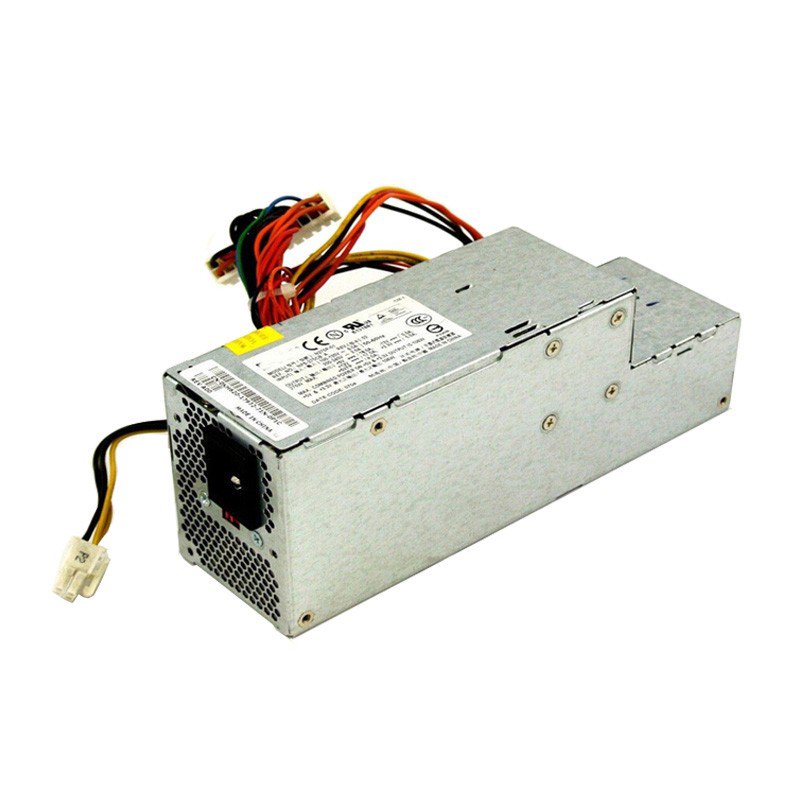

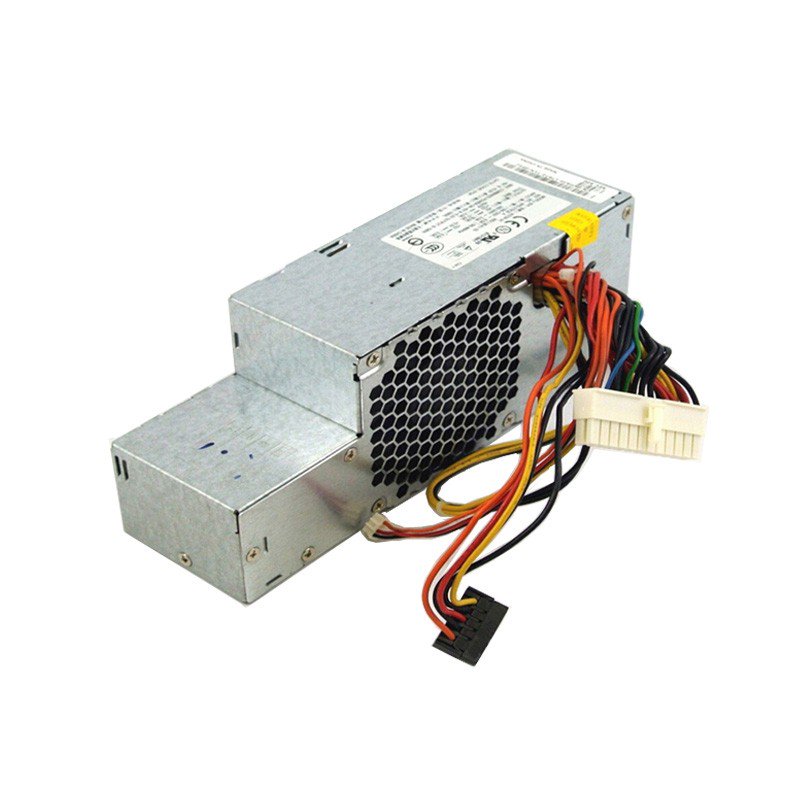

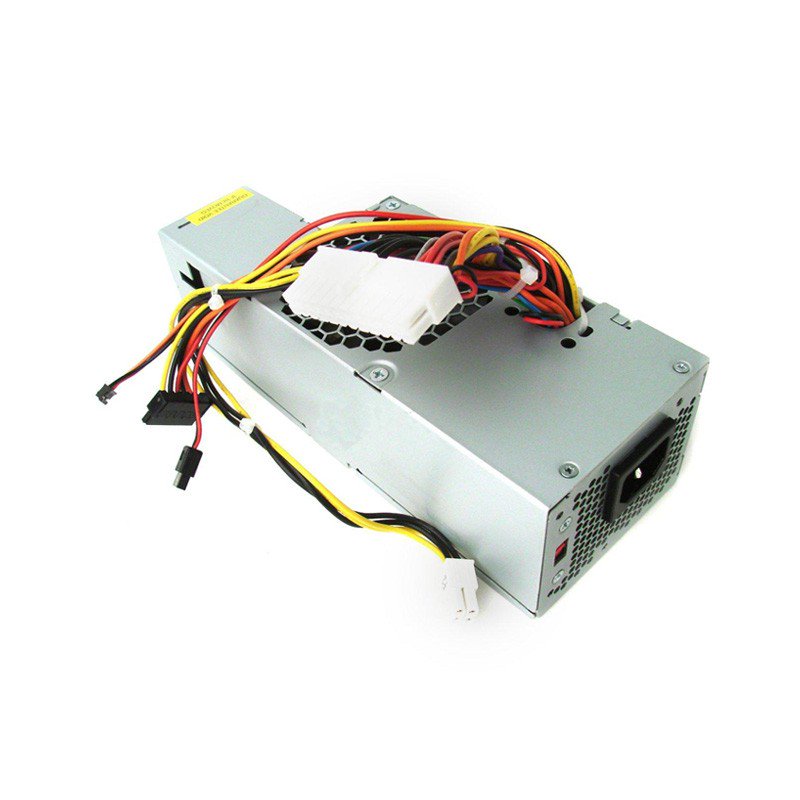

Dell Optiplex 740 745 755 SFF 275Watt Power Supply RW739 0RW739 D275P-00

Regular price ¥0.00 Sale

Product SKU: 0RW739


Specifiction

Item Dell Optiplex 740 745 755 SFF 275Watt Power Supply 0RW739 D275P-00
Part Number RW739,0RW739,CN-0RW739
Alternative Parts MH300 RW739 KH620 YK840 JW067 RM117 PW124
Model Number D275P-00
Max Power 275watt
Input 100-120V~ / 6,0 A 200-240V~ / 3.0 A
Output * +12V / 17,0 A * +5V / 18,0 A * -12V / 0,5 A * +3,3V / 5 A * +5Vsb / 4 A
Application Dell Optiplex 740 745 755 SFF
Detail Description Part Number: RW739,0RW739,CN-0RW739 Model No.: D275P-00 Max Power: 275W Fit Models: Dell Optiplex 740 745 755 SFF
Connectors 1x 24-pin DC Power Connector P1 1x 4-pin DC Power Connector P2 1x 5-pin Serial ATA Power Connector P3 1x 4-pin Floppy Power Connector P5 1x 6-pin Slimline SATA Connector P6
Condition Refurbished, Tested, Working Good
HOW TO REPLACE YOUR PC POWER SUPPLY

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage, which for U.S. users means 115 (look for the little red switch on the back: If it's showing 230, slide it to 115). Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
